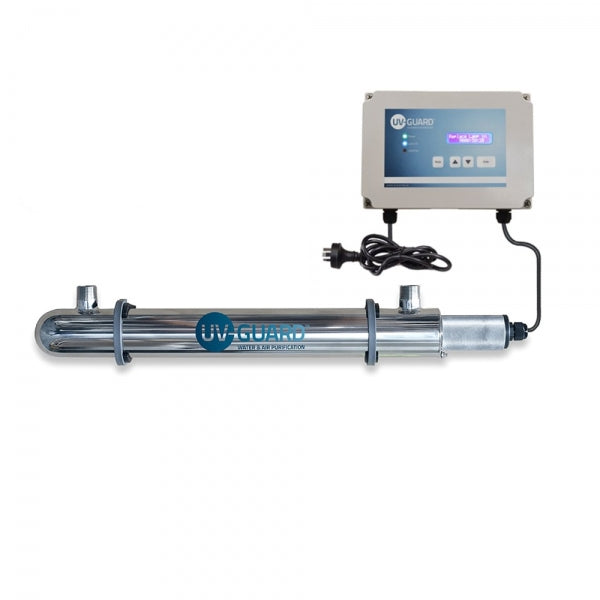

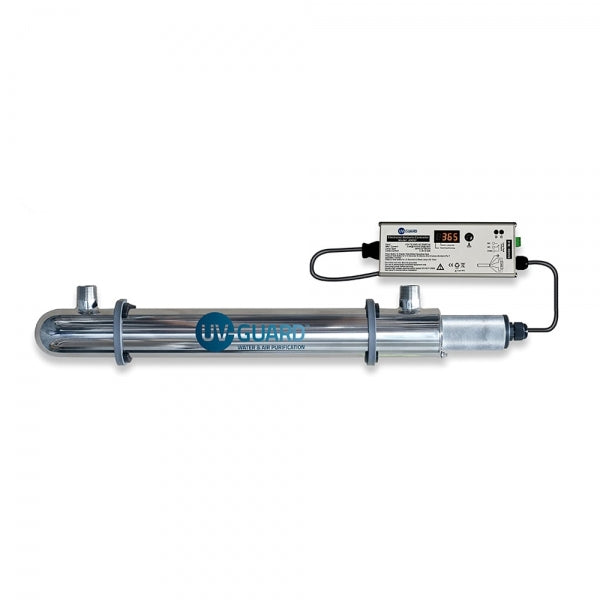

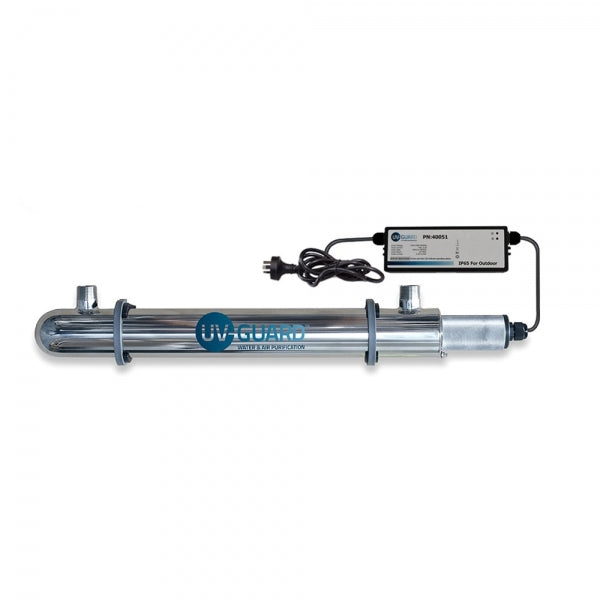

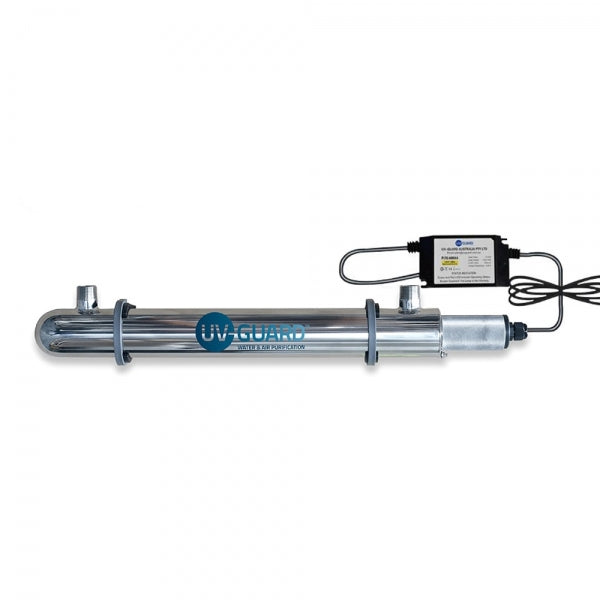

Awesome Water UVG SLT30 Ultraviolet Light System - 34 LPM 30 Watt

The Awesome Water UVG SLT30 UV System is a compact, high performance UV water disinfection unit designed for small homes and residential applications. Built with a durable 316 grade stainless steel reactor and quality components, it delivers reliable protection against harmful microorganisms while maintaining efficient water flow.

Product Overview

• 316 grade stainless steel UV reactor

• 3/4” male BSP inlet and outlet connections in U configuration

• 30W UV lamp

• Quartz sleeve and O-ring included

• Heavy duty poly mounting brackets

This system is part of the SLT-Series, a cost effective and high performing UV disinfection range offering eight models. With options suitable for indoor and outdoor installation, the SLT-Series is ideal for under sink systems, whole house treatment, swimming pools, and pond clarification.

Key Features

• 316 grade stainless steel UV reactor
  (304 grade stainless steel used for SLT1 and SLT2 models)

• BSP inlet and outlet connections in U configuration

• Available with low pressure, low pressure high output, or low pressure amalgam UV lamps

• Indoor and IP65 weatherproof controller options

• Customisable features including:

  • Lamp safety interlocking device

  • Remote on and off functionality

  • SMS fault notification module

  • Reactor temperature safety system

  • Modbus module

  • Volt free fault contacts

  • Personalised software options

Applications

Residential Water Treatment

Available with Outdoor IP65 Power Supply option.

Maximum Flow Rates

Potable Water

• Up to 16 litres per minute

Non-Potable Water

• Up to 21 litres per minute

The Power of UV Disinfection

UV disinfection uses ultraviolet light in the germicidal wavelength range between 200 and 300 nanometers. The optimum wavelength for effective disinfection is 264 nanometers, located within the UV-C spectrum.

When microorganisms are exposed to germicidal UV light, they are either destroyed or rendered incapable of reproducing. The high energy UV-C light is absorbed by the DNA of bacteria, viruses, spores, and other pathogens. This absorption disrupts their DNA structure, preventing replication and eliminating their ability to infect.

A sufficient UV dose can achieve up to 99.9% reduction in bacteria.

Performance Specifications

Maximum Flow Rate – 16 L/min at 40 mJ/cm²

Suitable for:

• Town water supplies with 80% UVT

• Rainwater tank supplies with 90% filtered water UVT

Maximum Flow Rate – 21 L/min at 30 mJ/cm²

Suitable for:

• Pond water

• Irrigation systems

• Non-potable water treatment

Technical Specifications

• 316 stainless steel UV reactor with heavy duty poly mounting brackets

• Connections: 3/4” BSP male threads

• Dimensions: 60 cm x 6.3 cm

• IP65 weatherproof controller options available

• WaterMark Certified

• Warranty: 1 year

UV Lamp Replacement

For optimal performance, UV lamps should be replaced every 12 months.
