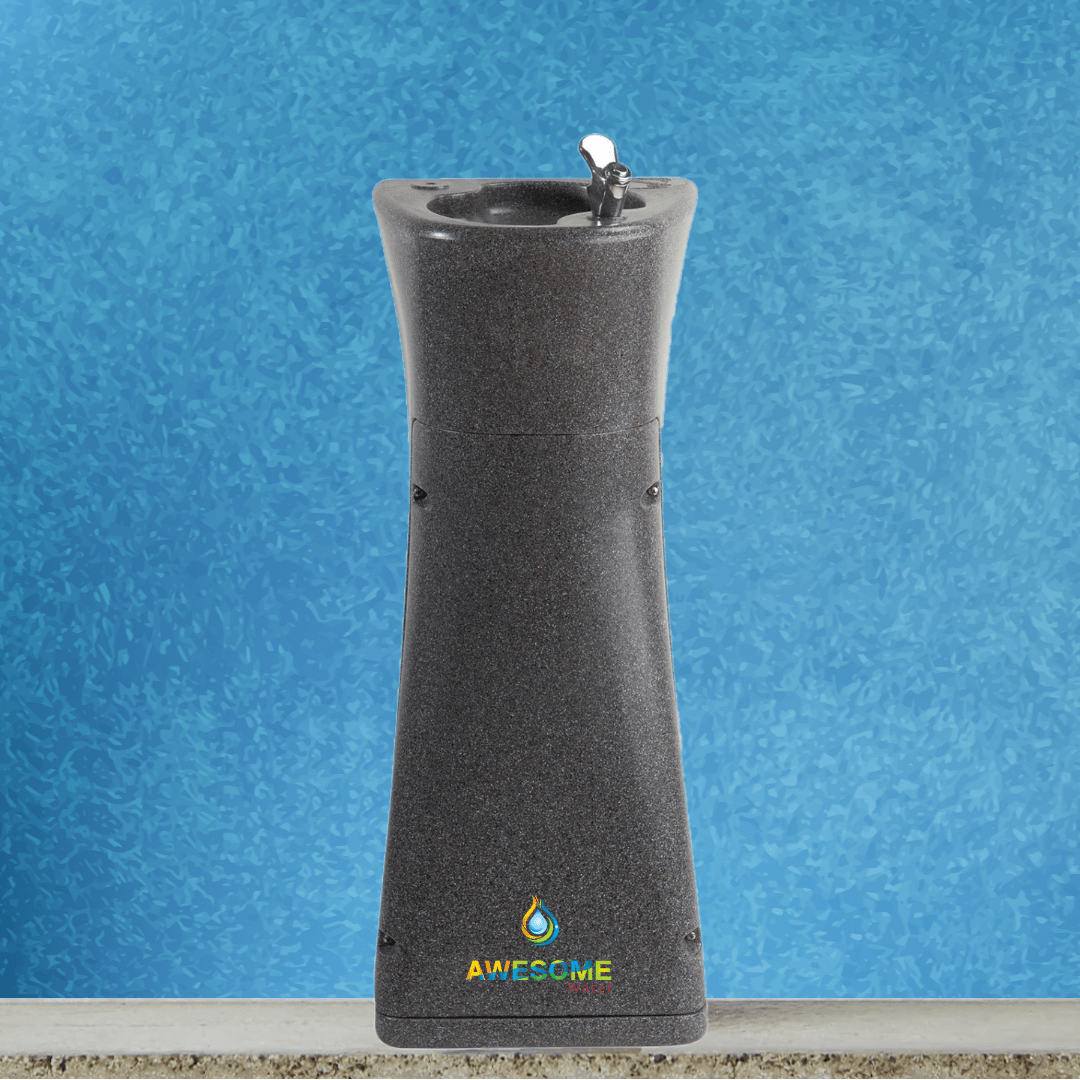

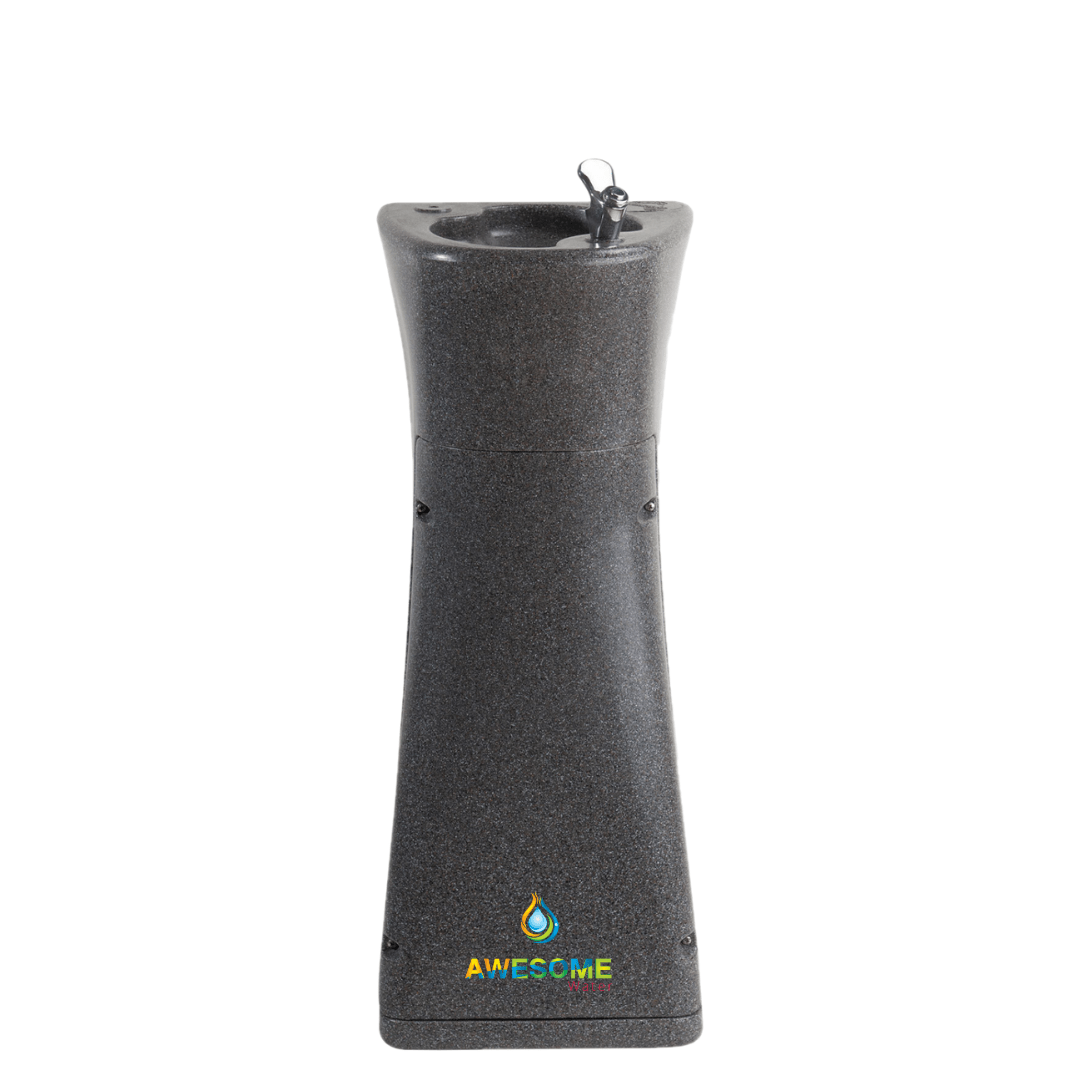

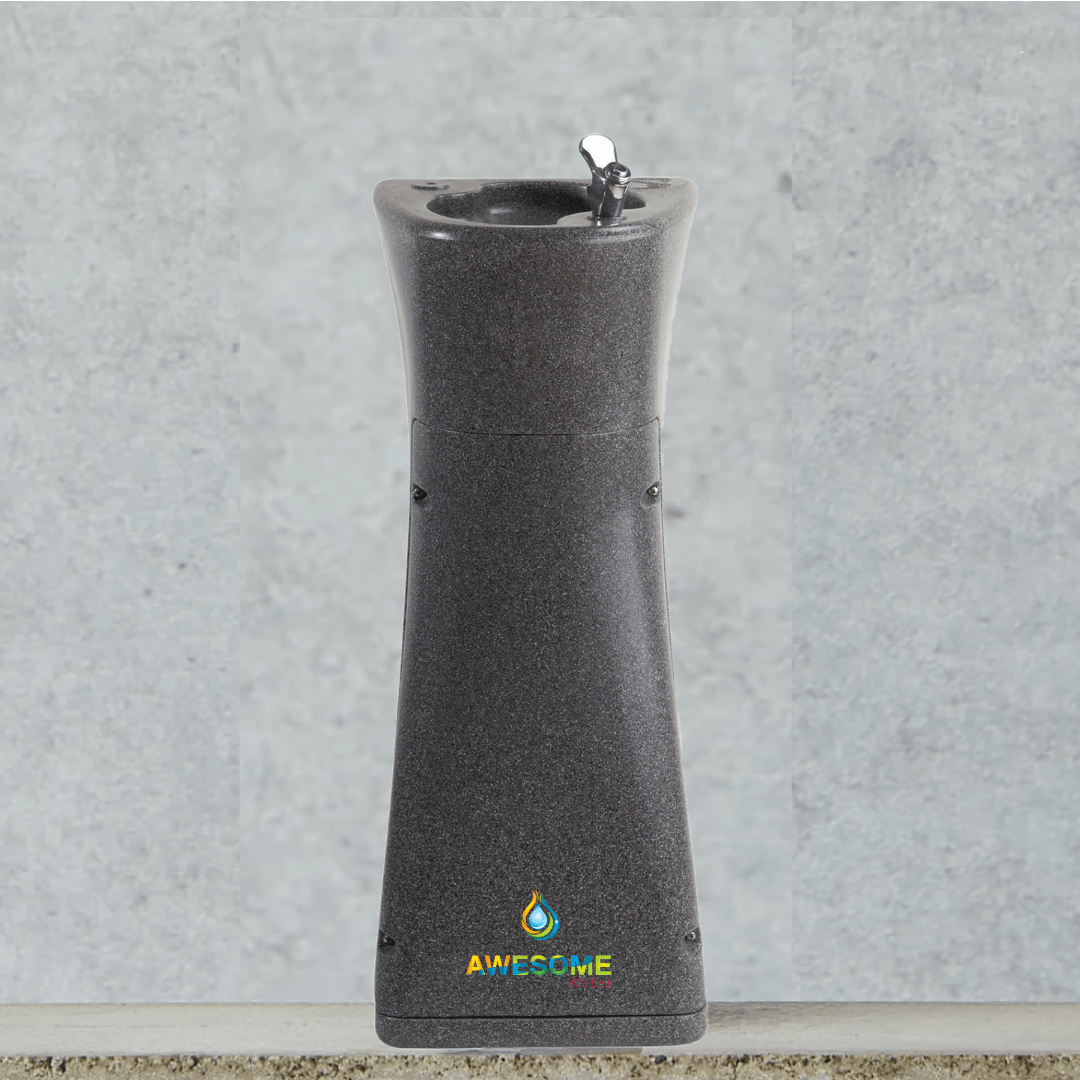

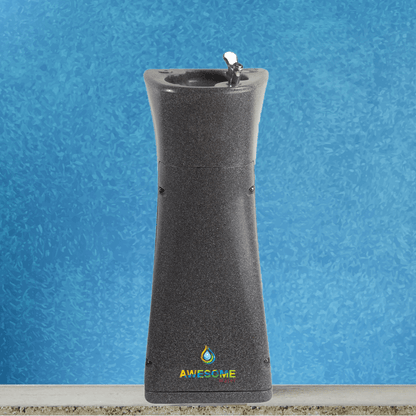

Awesome Water® Ruff "N" Tuff

GREAT FOR OFFICES, GYMS, BUILDING AND CONSTRUCTION SITES

The Awesome Water® Ruff "N" Tuff is an extremely durable construction material made of rota molded UV stabilized polyethylene meaning that it 100% rustproof & virtually vandal-proof.

The Ruff 'N' Tuff has a one piece rota moulded polyethylene cabinet which can be easily anchored to almost any surface. Along with the internally fitted drain, this provides unequalled vandal resistance.

An optional internal or external filter will reduce sediment, chemicals, organic compounds and impurities which can adversely affect the quality and taste of your drinking water. If a filter is required, please specify on order.

Features

• 100% rust proof cabinet
• Impact-resistant construction
• 30L of chilled water per hour
• 1.9litre stainless steel tank.
• Optional bottle filler
• Optional filtration
• Easy service access via the front panel.
• Expansion valve to protect from mains water pressure surges
• 12 Month comprehensive warranty
• NEW IP33 RATING
• Designed in Australia
• A 1.5 metre power cord with standard 3 pin plug is provided.
• The inlet is an industry standard 1/2” female BSP threaded connection situated on the rear of the cooler, (see installation instructions for exact rough in details).
• Ruff 'N' Tuff cabinets are made of rota-moulded pigmented polyethylene. This UV stabilised material provides an external cabinet that is durable, modern, and 100% rust proof.



 Dimensions:

• 420mmW x 420mmD x 1180mmH
• 28kg

(A 350kPa PRESSURE LIMITING VALVE MUST BE FITTED
UPON INSTALLATION OR WARRANTY WILL BE VOID)

Design Registration No. 158110.

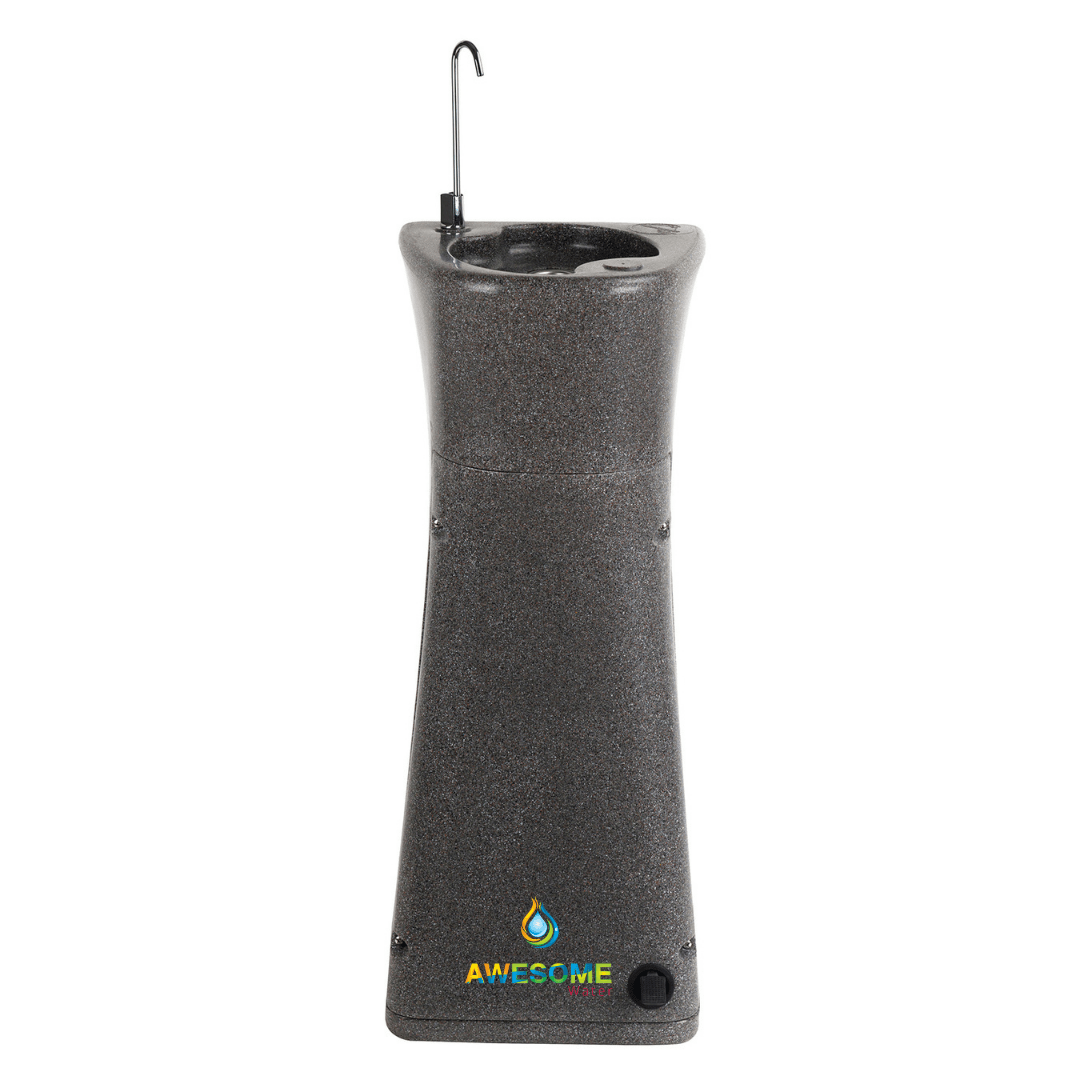

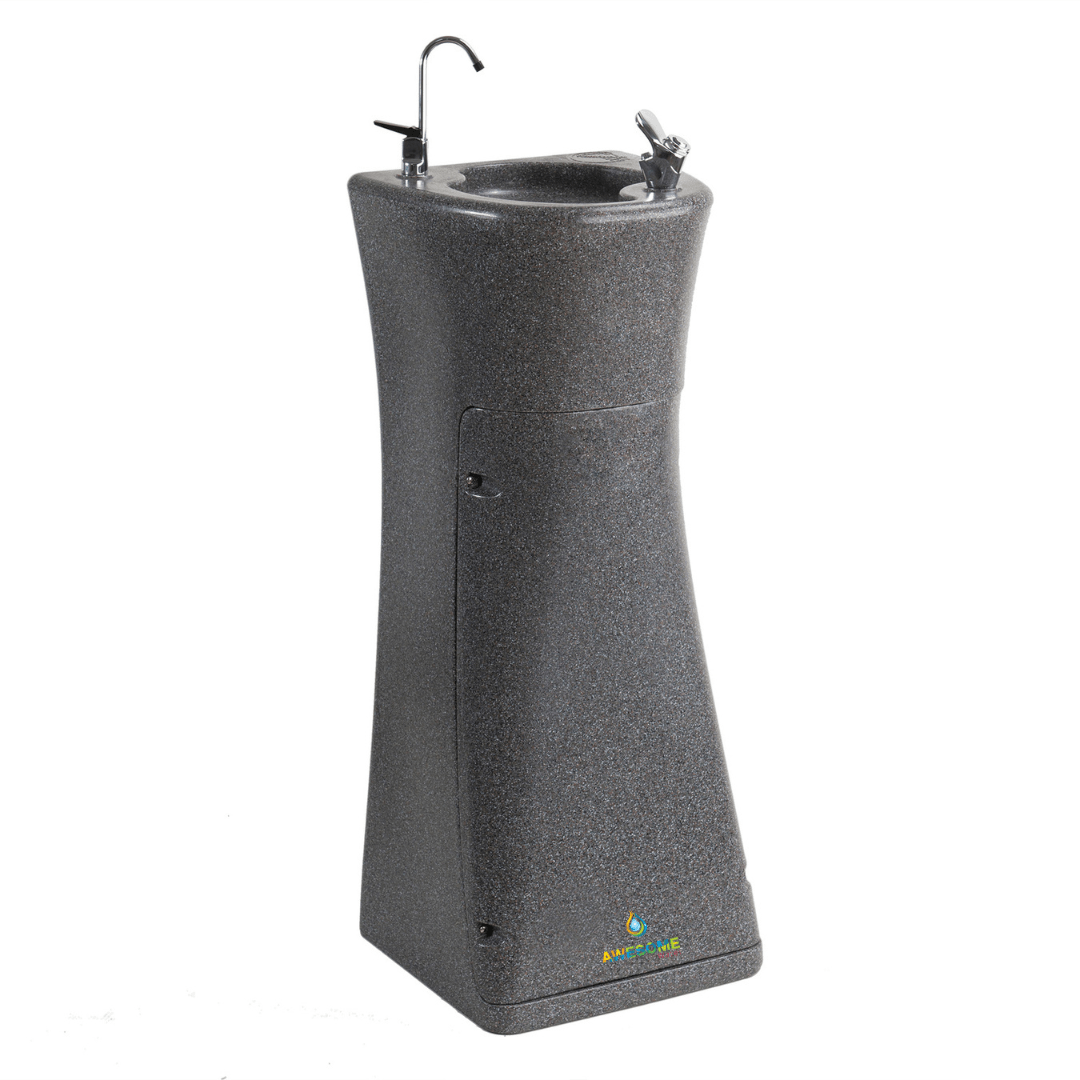

Unit depicted has optional Glass Filler fitted.

 RUFF

“N” TUFF

RUST PROOF CABINET

The new IP33 rating gives extra protection against dust, dirt and moisture, making the RUFF N TUFF perfect for construction sites, schools and mines.

SERVICE ACCESS

The front access panel is secured with four concealed stainless steel screws. Removal of this panel provides access for any purpose including service, maintenance and filter replacement.

VANDAL RESISTANCE

The Rough & Tough has a one-piece rota moulded polyethylene cabinet that can be easily anchored to almost any surface. Along with the internally fitted drain, this provides unequaled vandal resistance.

OPTIONAL FEATURES:

FILTRATION

An internal or external Awesome Water filter will reduce sediment, chemicals, organic compounds, and impurities which can adversely affect the quality and taste of your drinking water. If a filter is required, please specify on order.

TEMPORARY DRAIN KIT

1.5mtr temporary drain kit is available for temporary installations such as construction sites.

INSTALLATION CONNECTIONS:

ELECTRICAL

A 1.5-meter power cord with a standard 3 pin plug is provided. Power consumption Ambient Temp 25deg. (kw.h/24h) 0.044.

WATER INLET

The inlet is an industry standard 1/2” female BSP threaded connection situated on the rear of the cooler, (see installation instructions for exact rough in details).

DRAIN OUTLET

The drain outlet and integrated p-trap provide an industry

WARRANTY:

The warranty provides comprehensive parts and labour coverage for the period of 12 months from the date of the original sale.

SHIPPING DETAILS PACKED WEIGHT: 28kg

PACKED VOLUME: 0.208M3

PACKED DIMENSIONS: 420mmW x 420mmD x 1180mmH

ORDERING CODES:



CODE	DESCRIPTION
RM33	RUFF N TUFF with bubbler tap only
RM33GF	RUFF N TUFF with bubbler tap and glass filler

CAPACITY:



MODEL NUMBER	AMBIENT TEMP	INLET TEMP	LITRES/HR 10°C WATER	RESERVOIR VOLUME
RM33	32°C	27°C	30 LPH	1.9 Litre

* Based on intermittent use under environmental conditions of

ARI Standard 1010 and installation requirements of ARI Standard 1020.

** Due to our policy of continuous development, specifications are subject to change without notice.

*** Colour is as close to actual as printing processes allow.

standard 40mm connection situated on the rear of the cooler. (See installation instructions for exact rough in details).

A 350kPa PRESSURE LIMITING VALVE MUST BE FITTED UPON INSTALLATION OR WARRANTY WILL BE VOID

INLET:

860mm ABOVE BASE

100mm LEFT OF CENTRE LINE

(from the back)

OUTLET:

860mm ABOVE BASE

30mm LEFT OF CENTRE LINE

(from the back)
