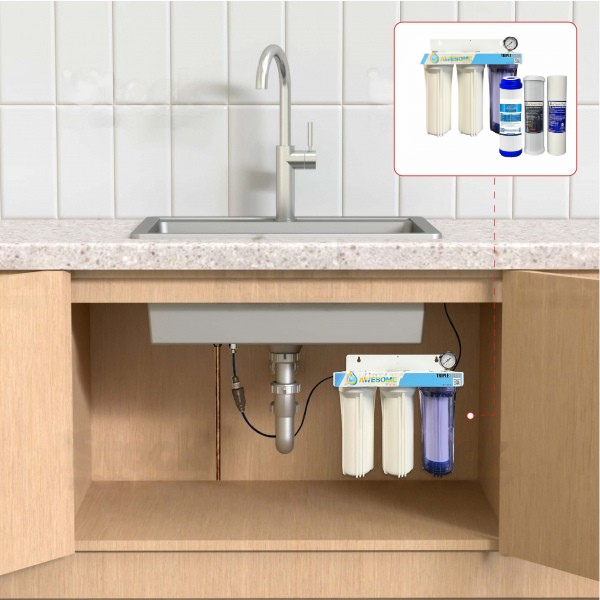

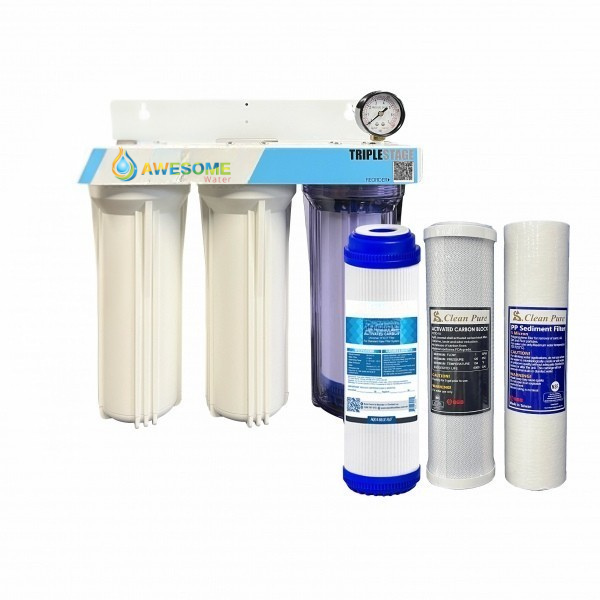

3 Stage Under Sink Water Kit

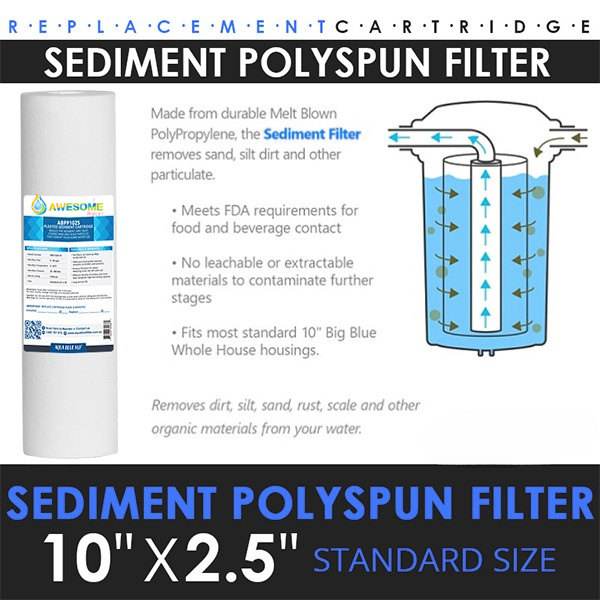

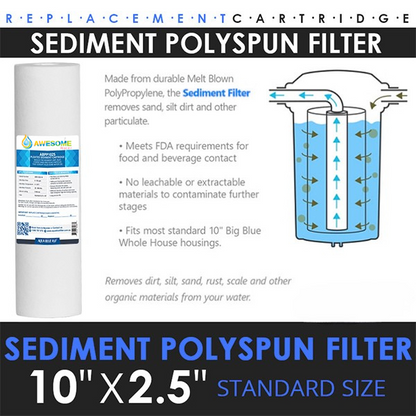

10" Sediment Filter

• Manufactured from 100% pure polypropylene fibers

• Filters out larger dirt and rust particles

• High dirt-holding capacity and superior sediment filtration

• Excellent bacteria and chemical resistance

• Extends the life of primary filter cartridges

• 100% Polypropylene material for wide chemical compact

• True multi-layered depth filtration

• Pressure drop will be determined based on feed water pressure, filter cartridge selection, port sizes, fluid viscosity, filter life, and conditions.

Specifications

• Model Number: ABPP1025-5
• Max. Flow: 90 Lpm
• Operating Temperature: 4 - 52°C(39 - 126°F)
• Max. Pressure: 116 psi
• Size: Standard 2.5” x 10”
• Micron Rating: 5 Micron
• Filtration Life: 3 - 5 months/2500G *Depends on water quality and level of contaminants.

Directions: Flush after installation for 5 minutes. For best results, change the cartridge at 6-month intervals.
Caution: Do not use microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe the manufacturer's instructions.

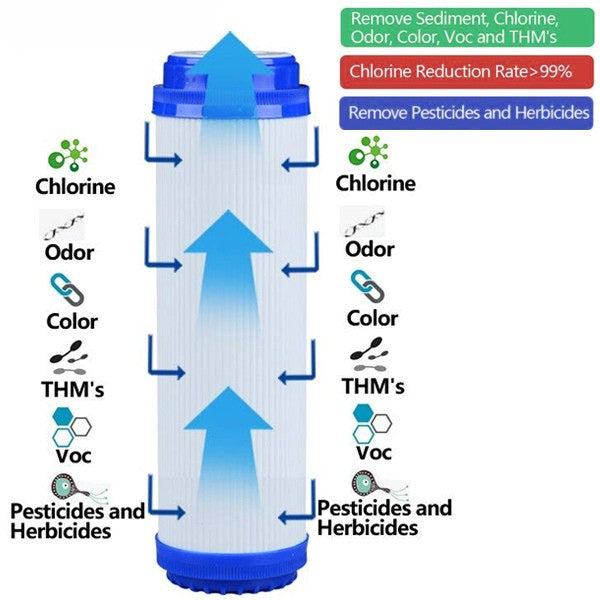

GAC Granular Activated Carbon Water Filter Cartridge
10" x 2.5"

• Material - Food Grade Plastic Shell, BPA Free
• Special Material - Special PP Pad to remove big impurities
• Environmental - Environmentally Friendly and Food Grade TPR Washers
• Filtration Life - 3-5 months/2500G, depends on water quality and level of contaminants
• Granular activated carbon water filter replacement cartridge used to reduce the bad taste and odor of chlorine in a variety of low-flow applications such as under-sink, countertop, and pre/post-reverse osmosis filtration systems
• AB-GAC10 for a standard Reverse Osmosis Water Filtration Unit or any type of Water Filtration Unit with 10" housing.
• highly efficient reduction of chlorine taste and odor, as well as other tastes and odors of many organic chemicals and volatile organic compounds. All GAC filters are made with high-quality coconut shell carbon.
• This filter is a compatible replacement water filter cartridge, 10-inch
• GAC Granular Activated Carbon Taste, Odor, VOC Coconut Shell Carbon Water Filter 10" Standard

Specifications:

• Model Number: AB-GAC10
• Max. Flow:2.5 gpm
• Operating Temperature: 4 - 52°C(39 - 126°F)
• Max. Pressure: 80 psi
• Size: Standard 2.5” x 10”
• Filtration Life: 3 - 5 months/2500G *Depends on water quality and level of contaminants.
Directions: Flush after installation for 5 minutes. For best results, change the cartridge at 6-monthly intervals.
Caution: Do not use microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe the manufacturer's instructions.

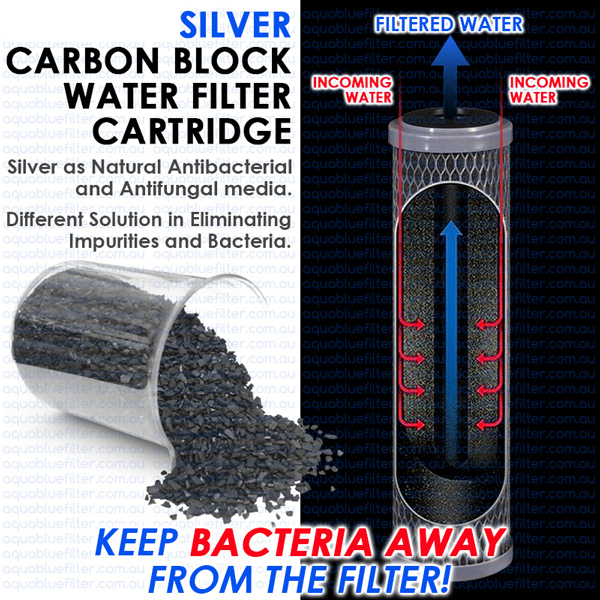

Silver Carbon Block Filter Cartridge
10" x 2.5"

Features & Benefits
Silver is a natural antibacterial and antifungal medium.
Different solutions for eliminating impurities and bacteria.
Keep bacteria away from the filter.
100% Factory checked, ready for quick and reliable installation.

General Installation
1. Flush the new cartridge for 10 minutes before use.
2. Replace the cartridge when the rated capacity is reached or when the flow becomes too slow.
3. Install in compliance with state and local laws and regulations.

Filter Cartridge Can Be Used For The Following Purposes
Bath, Kitchen, Drinking Water Systems, Laundry, Aquariums, Home Brewing

Specifications
- Model Number: ABSILVER1025-5
- Carbon Type: Activated Carbon
- Flow Rate: .75 gpm
- Operating Temperature: 40 - 100 ºF
- Max. Pressure: 125 psig
- Micron Rating: 5 Micron
- Size: Standard 2.5” x 10”

Directions: Flush after installation for 5 minutes. For best results, change the cartridge at 6-month intervals.
Caution: Do not use with microbiologically unsafe water without adequate disinfection.
Warning: For correct operation of this, it is essential to observe the manufacturer's instructions.
