Awesome Water INTRIX One Tap – Hot & Cold Under-Sink System

Premium Under-Sink Hot Water & Filtration

Awesome Water INTRIX One Tap Hot & Cold System

Enjoy filtered hot water, filtered chilled water, regular mains hot and regular mains cold water from a single premium kitchen tap.

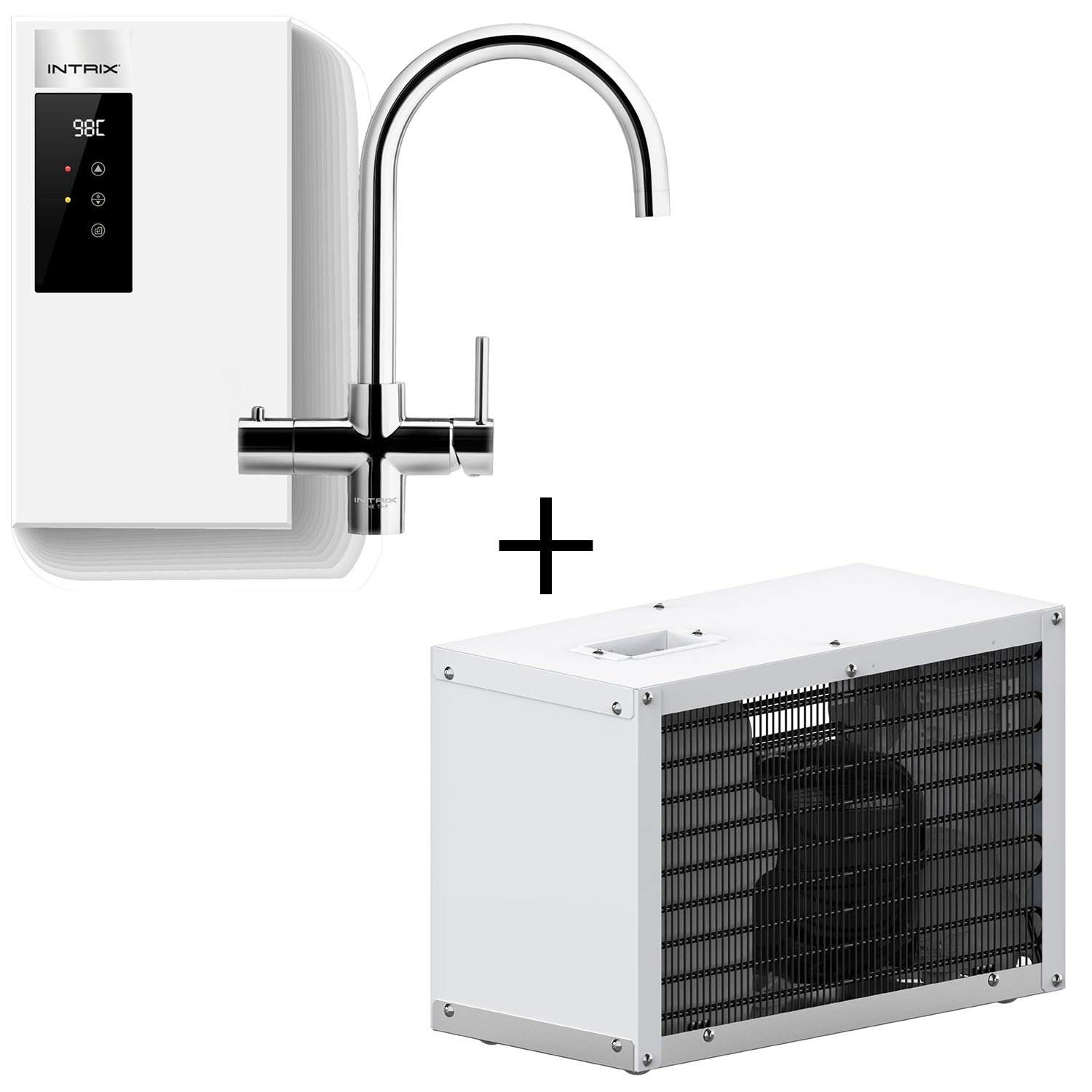

The Awesome Water INTRIX One Tap Hot & Cold System combines the INTRIX patented titanium-core hot water system with a WaterWorks under-sink chiller, creating a space-saving 4-in-1 kitchen water solution.

Choose Your Temperature Configuration

Two system configurations are available, allowing you to choose the option that best suits your kitchen and drinking water needs.

One Tap. Multiple Water Options.

Designed to replace your existing kitchen mixer, INTRIX One Tap combines filtered water and regular mains water through a single elegant tap, helping to reduce clutter around the sink and keep the under-bench equipment neatly concealed.

• Filtered hot water up to 98°C
• Filtered chilled water when the WaterWorks chiller option is selected
• Regular mains hot and cold water through the same tap
• Patented titanium inner-core technology
• Ultra-fine filtration down to 0.01 micron
• High-capacity filter rated up to 23,000 litres
• Typically one filter replacement per year, depending on water quality and usage
• Compact under-sink design
• Adjustable hot water temperature
• Eco mode for reduced energy consumption

Patented Titanium Inner Core

At the heart of the INTRIX One Tap is its patented titanium inner-core technology, designed to provide long-term durability and reliable hot water performance.

Titanium is selected for its resistance to corrosion and metal leaching, helping maintain the integrity of the water pathway while supporting long service life.

The titanium heating system also helps reduce scale build-up and avoids the need for repeated boiling, while delivering adjustable hot water between 60°C and 98°C.

Advanced 3-Stage Nano Filtration

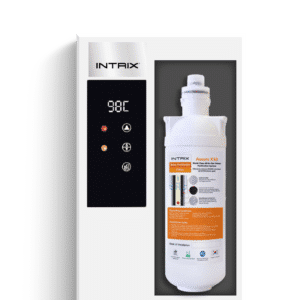

INTRIX One Tap uses a compact three-stage filtration cartridge combining sediment filtration, activated carbon and a nano-membrane.

The supplier recommends replacing the filter approximately once every 12 months under typical household use.

Hot Water From 60°C to 98°C

Hot water temperature can be adjusted through the under-sink command centre between 60°C and 98°C.

The system is intentionally limited to 98°C to minimise sputtering and excessive steam while still providing very hot water for drinks, cooking and everyday kitchen use.

The system also includes an Eco mode designed to reduce energy use during normal operation.

Designed With Safety in Mind

INTRIX One Tap incorporates multiple safety features designed for everyday household use.

• Push-to-activate hot water control
• Child-resistant hot water activation
• Heat-resistant tap construction
• Automatic temperature and altitude calibration
• Dry-burn and overheating protection
• Temperature limited to 98°C to help minimise sputtering

Available Tap Finishes

Choose from four contemporary finishes to suit your kitchen style:

Boiler & Command Centre Specifications

*Filter life varies depending on household water consumption and the contaminant load of the incoming water.

WaterWorks Chiller Specifications

The chiller is included with the Hot & Cold configuration and converts the standard filtered ambient outlet into filtered chilled water.

Installation Requirements

Before ordering, please check that your kitchen has the necessary space, power and plumbing connections.

• A 10A power outlet below the counter
• Minimum command-centre space of approximately 380mm high × 200mm wide × 350mm deep
• Water connections within approximately 1 metre of the installation location
• A 35mm tap hole
• Additional under-sink space for the chiller when selecting the Hot & Cold option

If a suitable power outlet is not already available, a licensed electrician may be required before installation.

Certification & Compliance

INTRIX supplier documentation references a broad range of international water, electrical, quality and regulatory standards.

• Australian WaterMark certification
• Australian Regulatory Compliance Mark (RCM)
• Australian Water Efficiency Labelling & Standards
• WRAS – UK Water Regulations Approval Scheme
• NSF 42, 53 & 401 filtration standards
• European CE safety standards
• RoHS compliance
• IECEE CB Scheme
• SIRIM testing and approval references
• SGS testing, inspection and certification references
• ISO 9001 system certification reference
• Halal certification reference for filtration products

Certification and compliance may apply to specific components, markets or configurations. Please contact Awesome Water if you require confirmation of a specific certification for your installation.

Frequently Asked Questions

What water options does the INTRIX One Tap provide?

The answer depends on the temperature configuration selected.

The Hot & Ambient version provides filtered hot, filtered ambient, regular mains hot and regular mains cold water.

The Hot & Cold version adds the WaterWorks chiller, replacing the filtered ambient outlet with filtered chilled water. It therefore provides filtered hot, filtered chilled, regular mains hot and regular mains cold water.

Can I drink the filtered water directly?

Yes. The INTRIX filtration system is designed to provide filtered drinking water through its sediment, carbon and nano-membrane filtration stages.

How hot does the water get?

The hot water temperature is adjustable between 60°C and 98°C through the command centre.

Why does the temperature stop at 98°C?

Limiting the maximum temperature to 98°C helps reduce excessive steam and sputtering from the tap while still delivering very hot water for common kitchen uses.

How often should the filter be replaced?

The supplier recommends replacement approximately once every 12 months under normal household conditions.

Actual filter life can vary depending on household consumption and the level of contaminants in the incoming water.

What is the filter capacity?

The INTRIX filter cartridge is rated for up to 23,000 litres.

Does the system require regular servicing?

The system is designed for low maintenance, with the annual filter replacement being the primary routine maintenance requirement under normal use.

Can I use my existing kitchen tap?

No. The INTRIX One Tap system requires the dedicated INTRIX tap, which is specifically designed to safely handle water temperatures up to 98°C and to control the different water functions.

What tap colours are available?

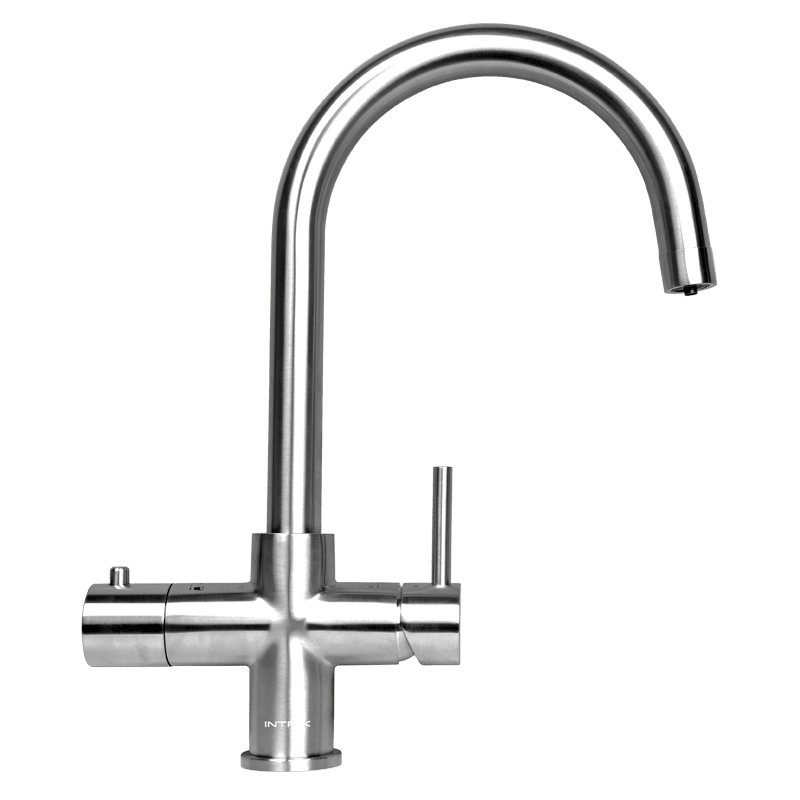

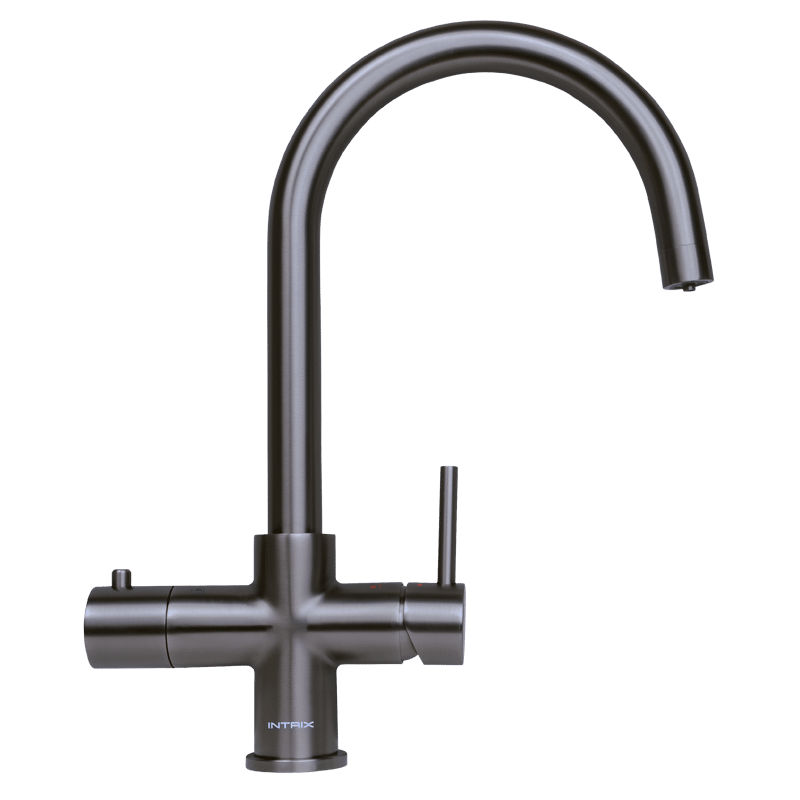

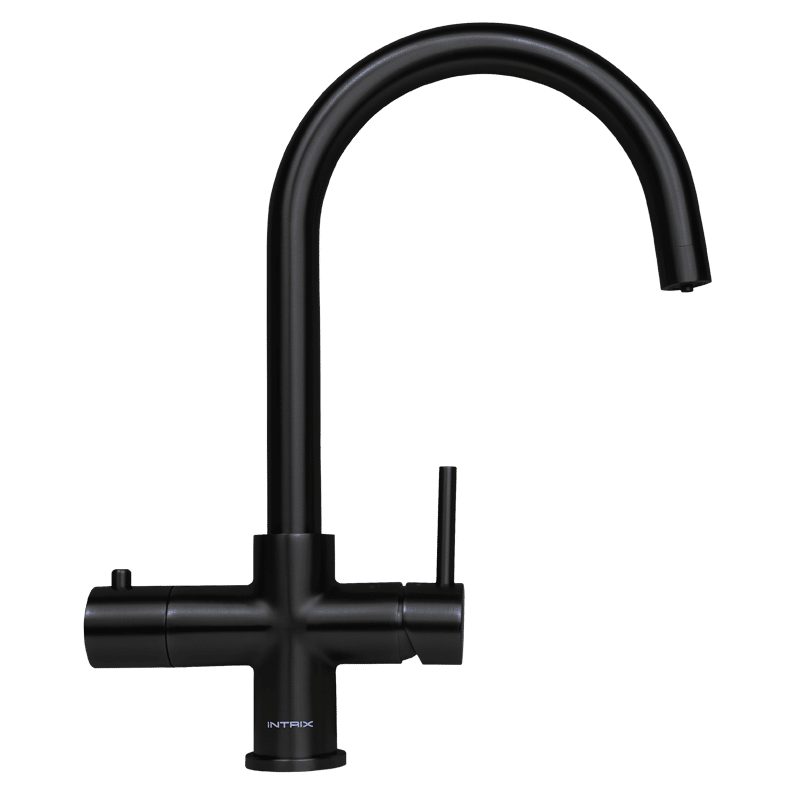

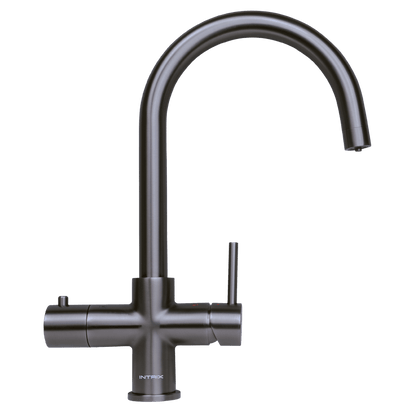

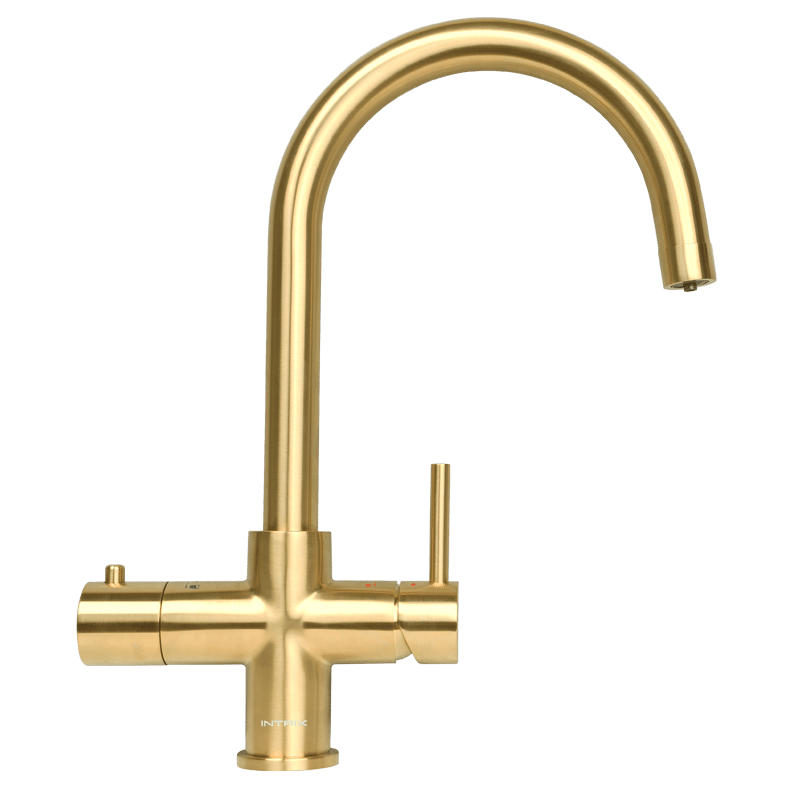

The available finishes are Chrome, Matte Black, Satin Gold and Gun Metal Grey.

What do I need for installation?

A standard installation requires suitable under-sink space, a 10A power outlet, nearby water connections and sufficient room for the command centre. The Hot & Cold option also requires additional space for the WaterWorks chiller.

Can Awesome Water assist with installation?

Yes. Contact Awesome Water for installation advice, pricing and assistance confirming whether your kitchen has sufficient space and suitable connections.

Upgrade Your Kitchen With INTRIX One Tap

Choose between filtered hot and ambient water, or upgrade to the WaterWorks chiller configuration for filtered hot and chilled water — all through one premium kitchen tap.
